Nov 16, 2013. | By: oliver


Quickly setting up a service in only a few minutes on Azure that allows us to debug both our locally and remotely deployed apps and web applications on almost every device and platform you can imagine via Browserstack through one common debugging tool.

Debugging Mobile

Debugging HTML5 mobile apps or web applications on mobile devices isn’t big fun nowadays unless you are enjoying the land of alert-debugging due to mostly absent debugging tools for DOM inspection or even a JavaScript console. Yes, there is Android Debugging Bridge (ADB) and since iOS 6 it is fairly easy debugging your app or web application on your iPhone or iPad. But not every one of us owns a Mac (needed for debugging), nor does every one of us own 20 different Android devices to thoroughly test it on version 2.0, 2.1, 2.2… 4.4… you get the idea. And what about Windows Phone, Firefox OS, Tizen, Sailfish OS? I don’t want to set up and learn a new debugging tool for every platform that’s out there. Most of these emulators like Windows Phone emulator don’t even provide debugging support for HTML5 apps or web applications.

So what if we could quickly set up a service in only a few minutes on Azure that allows us to debug both our locally and remotely deployed applications on almost every device and platform you can imagine via Browserstack through one common debugging tool and UI respectively that provides support for DOM inspection and a JavaScript console (among others)? What if we could basically clone debug.phonegap.com and let it talk to Browserstack? Sounds cool? Read on!

Meet the Three: Weinre, Browserstack and Azure

So what ingredients do we need to cook our ultimate mobile debugging soup? Not too many: Azure, Browserstack and Weinre (WEb INspector Remote).

Weinre is part of the Apache Cordova project and thanks to MS Open Technologies it is no longer restricted to Webkit browsers but now also works with IE 10+ and Firefox. If you are familiar with the F12 tools on IE, Firebug on Firefox or Web Inspector on Chrome, then you will feel right at home to debug your HTML5 pages on mobiles devices. Browserstack is a cool service that lets you fire up almost every browser on almost every platform you can imagine in the sky, including a few dozen mobile devices running Android, iOS and WP8. You can then let these browsers point to your externally hosted web applications or even to your locally deployed app or web app by setting up a tunnel to Browserstack. And last but not least, Azure. Microsoft’s cloud platform which we are going to use set up a VM that will host our service.

Setting it all up in 5 minutes

So why would you want to host Weinre on Azure? Well, there a couple of good reasons. First, Weinre is a server (running on Node.js) that communicates with your app or web application that you want to debug. This is realized by the apps’s inclusion of a special script (via HTML script tag) that is hosted on the Weinre server.

Running it on the public internet allows your app to communicate with Weinre no matter where on the Intra/Internet it is deployed. Second, you only need to set up this service once and then everyone on your team may just use it. No configuration errors, no endless fiddling with IP-settings, no waste of precious time. Simple.

Alright, let’s go through the steps needed to set this service up and then I’ll show you some really amazing things you can do with it.

First of all, go to http://www.windowsazure.com and get a free 1-month trial (if you don’t already have an account) worth $200. This is enough to let your VM run for thousands of hours… more hours than your free trial period.

Then create a new Windows Server 2012 VM. For our purpose I would suggest to go with Medium which is 2 cores and 3.5 GB RAM (but as always, it depends on your requirements). Give it a username and password and choose a region which is close to you.

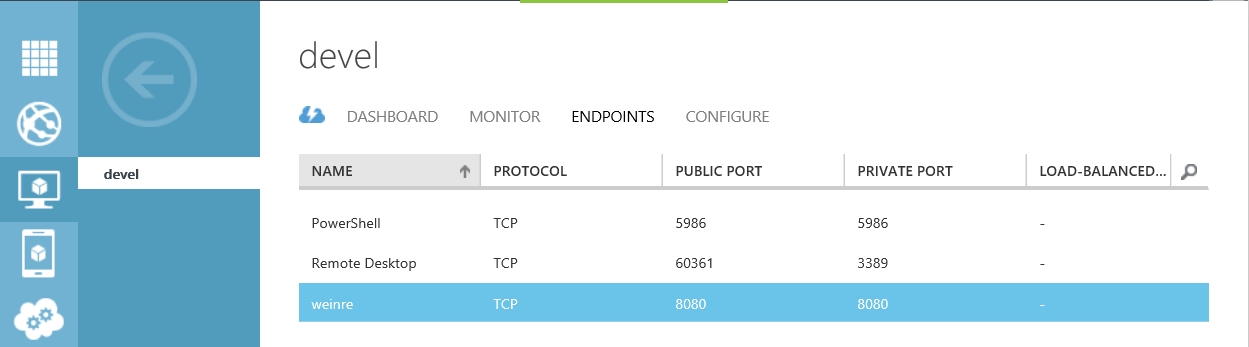

When it has finished to provision your VM, you need to configure its endpoints. Weinre will be listending on port 8080 per default. So we need to make sure that it can receive messages on that port. Per default, Azure only configures endpoints for Remote Desktop Protocol (RDP) and Powershell. So in your VM’s dashboard go to Endpoints and add a new entry for Weinre. As you can see below, I configured it to forward any messages send to its public port 8080 to its private port 8080. The private port is used internally by the virtual machine to listen for traffic on that endpoint. The public port is used by the Windows Azure load balancer to communicate with the virtual machine from external resources.

alt text

Then connect per RDP to your VM. This is death simple. Just click on the Connect button you will find in the lower left of the dashboard view. When you are connected, first thing we need to install is Node.js (Weinre runs on top of it). Fire up IE, go to http://nodejs.org/ and install it from there. Once it has been set up open up the command-line and type npm –g install weinre. This will install Weinre through the Node.js package management system. Then start weinre with weinre –boundHost <IPv4 address of your VM>. If you want to change the port it will listen to, use –boundPort but don’t forget to adjust your endpoint in the Azure management portal accordingly! Believe it or not, now you’re all set! Now to the fun part!

Let the Magic happen!

For the rest of this post it is assumed that you include the following script-tag in your app. This let’s your app talk to the weinre server:

<script src="http://[Weinre-Server's IP]:[port]/target/target-script-min.js#anonymous" />

Keep in mind that only one device at a time can be connected under the same URL. The device that connects last is the active one. If you need to support more multiple devices simultaneously just provide different names after the hashtag.

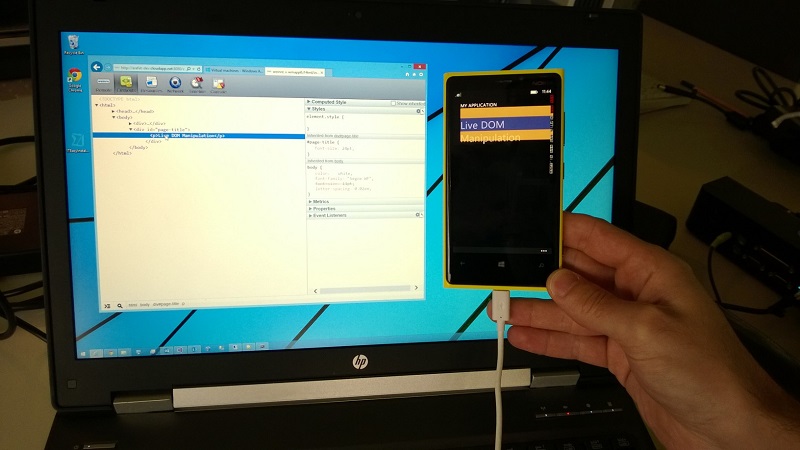

Let’s start easy. Ever tried to debug your HTML5 Windows Phone 8 app? No matter being run in the emulator or on a real device? No? Well, comes as no surprise because it is not supported (unless you’re a fan of alert()-debugging). As you can see in the below picture, I’m debugging an HTML5 app on my Lumia 920. In particular, I have just modified the DOM. I can select every element I want, change its contents, styles and get immediate visual feedback. I can also switch to the JavaScript console and evaluate and run any code in the context of my app that I like.

alt text

Just as an example, I’ve started the same application in the WP8 emulator and ran some alert-statements as can be seen in below picture. The console is even more useful, by providing error logs, warnings, etc. Great!

alt text

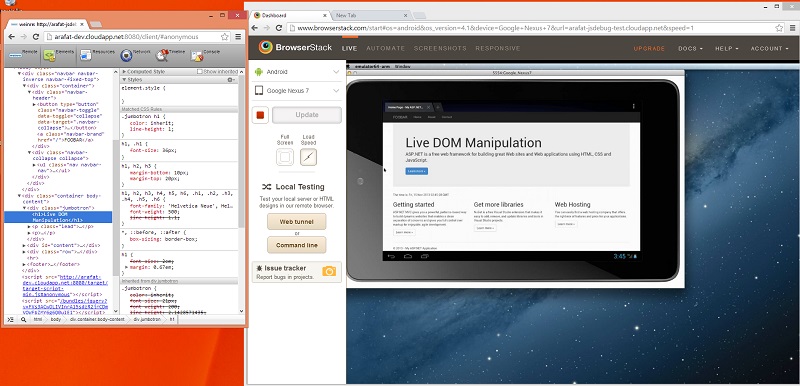

But we can even turn this up one notch! This time, we will go with an ASP.NET MVC application. We will host it on an Azure Website, but want to see how it looks and behaves on an Android Nexus 7 tablet. At the same time, I want to debug it with Weinre just like I did with my WP8 app. Of course I don’t have a Nexus at my disposal so I just fire one up on Browserstack. (We could also host it locally on IIS Express. For that matter, we would need to create a tunnel between Browserstack and our local system. This is dead easy (unless they aren’t using SSL-Breakers at your company’s intranet) and well documented on Browserstack.com.)

alt text

Now look at above screenshot! Isn’t that amazing? What you’re seeing is our ASP.NET MVC app hosted on an Azure Website running on Browserstack on a Nexus 7 tablet on the right side. On the left, I’m debugging it with Weinre on Azure. I’m manipulating its DOM and get instant visual feedback. I can also play around with the JavaScript console and do all sorts of funny things (such as starting an alert message).

Appreciate any comments or feedback! Have fun!
